Open visualizer →Why Choose the LIFT 100 Series?

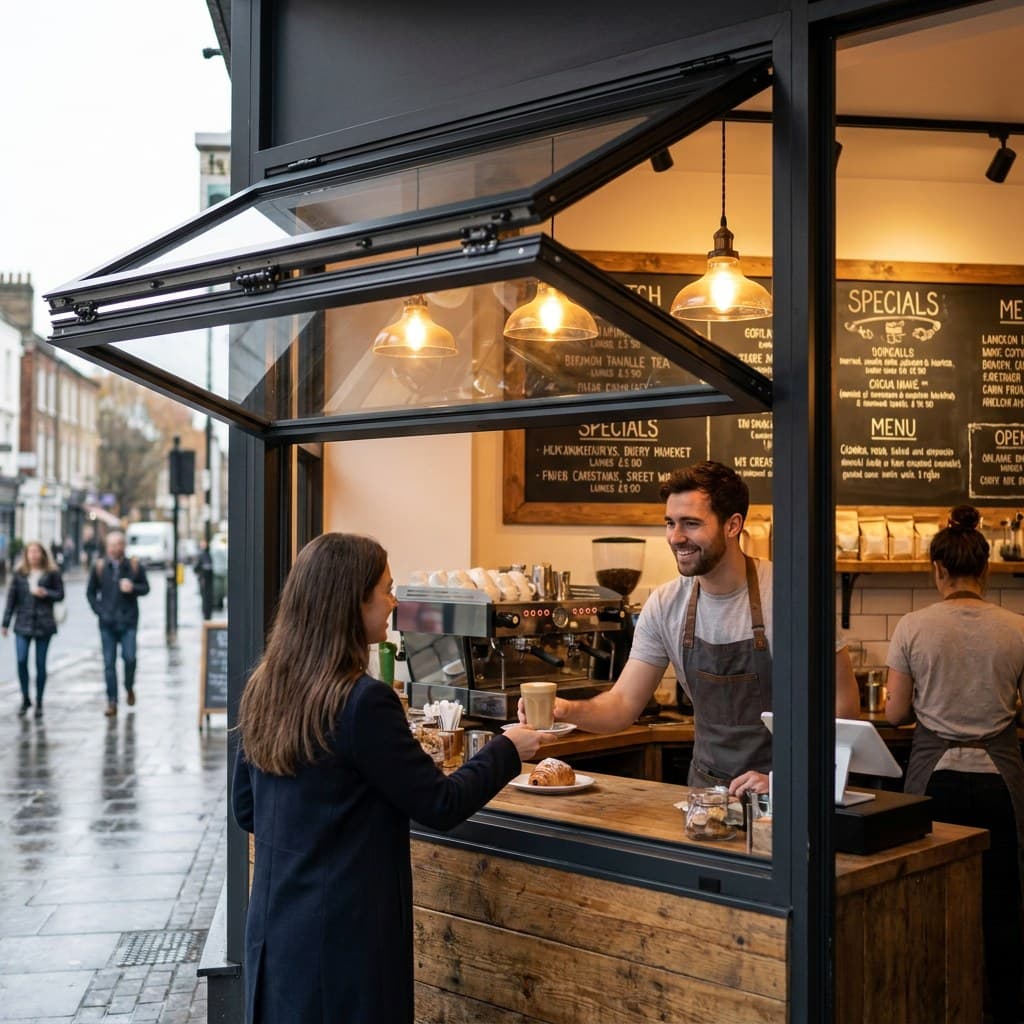

Fold the wall. Open the bar. The LIFT 100 Series Fold-Up Window turns an ordinary opening into a wide-open pass-through. The top-hinged sash folds upward in one smooth motion and holds at any height — fully open for a true indoor-outdoor counter, half open for ventilation, or anywhere in between. Order it with a bottom frame for a traditional window installation — or specify the no-bottom-frame version and run your countertop straight through the opening for a true indoor-outdoor bar.
- Effortless fold-up operation — heavy-duty hardware stops and holds at any height
- With or without bottom frame — flush pass-through or classic window install
- Retractable screen keeps bugs out while the breeze comes in — unobstructed view when not in use
- 1.72 mm aluminum alloy profiles with composite film layer for corrosion resistance
System design
Engineered to fold
01
Effortless Fold-Up Operation
The heavy-duty folding hardware raises the top-hinged sash smoothly and holds it at any height — fully open for a pass-through counter, partially open for ventilation, or fully closed. No cranks, no stays, no slamming.
02
Durable Ergonomic Handle
A robust handle makes the folding sash effortless to lift and pull, and the panels stop exactly where you leave them — customized ventilation for any season or occasion.
03
Retractable Screen — Available
A roll-up screen cassette spans the full opening and lowers into place when the sash is open — ventilation without the bugs, and an unobstructed view when not in use.
04
Built to Last
1.72 mm aluminum alloy profiles with a composite film layer deliver corrosion resistance and weather protection, finished in a durable powder coat.
05
Quiet, Weathertight Closure
High-quality weather strips work with the frame construction for quiet, weathertight performance — and the top-hinged design sheds rain even when the window is open.
06

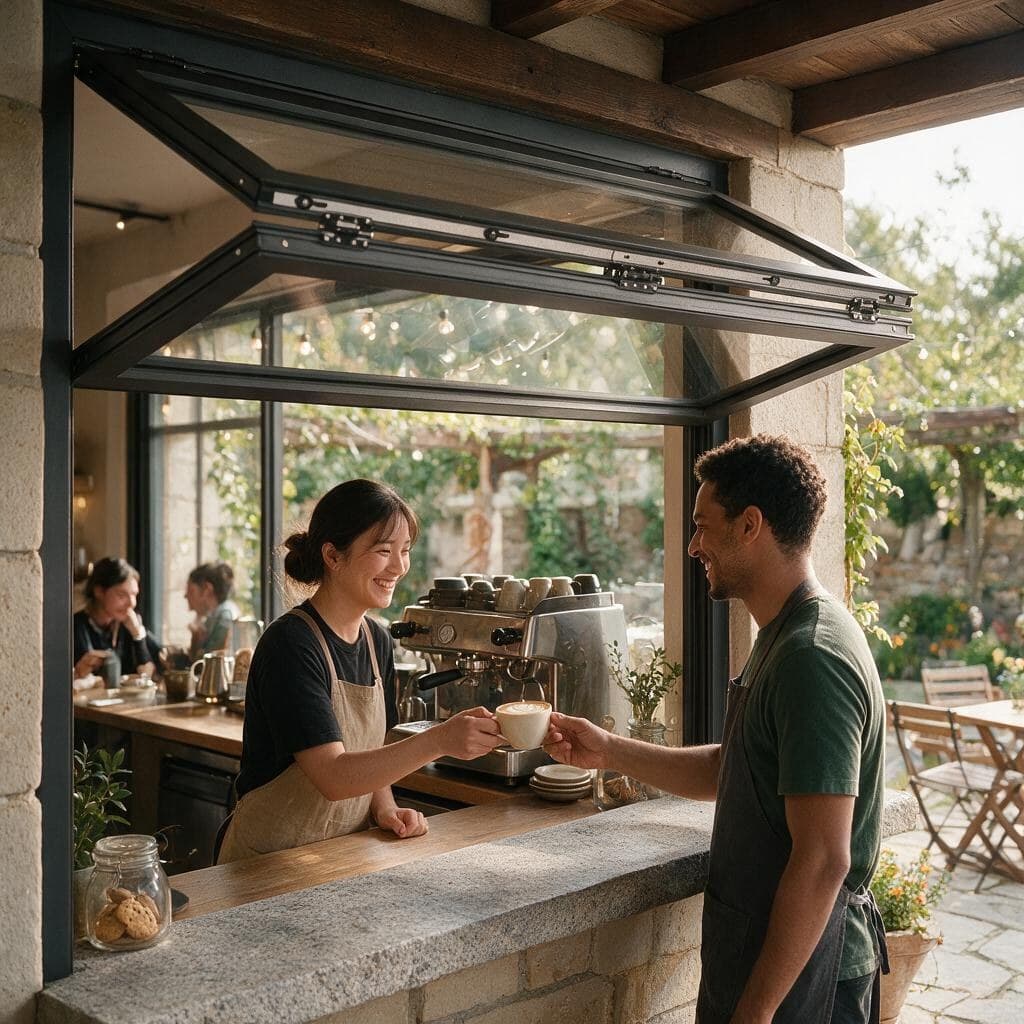

Pass-Through Configurations

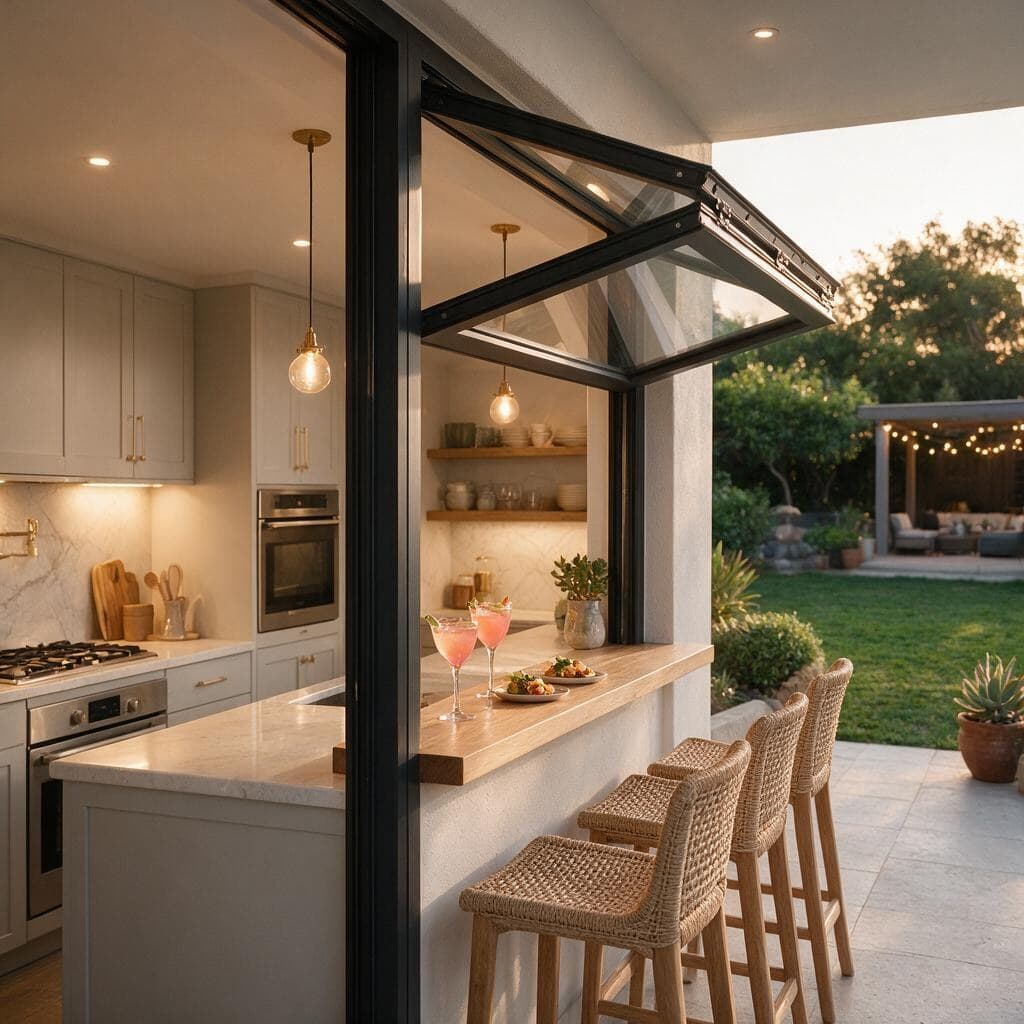

Choose the with-bottom-frame version for a traditional install with a finished interior ledge — or the no-bottom-frame version for a flush, floor-of-opening pass-through that runs your countertop straight through the wall.
Hardware
Hardware in the details

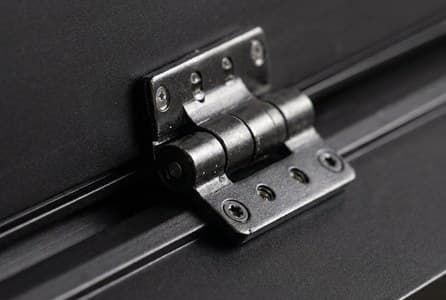

01Heavy-duty folding hardware
Rigorously designed to withstand daily use, the hardware raises the sash smoothly and holds the panels securely at any position — from fully closed to fully open.

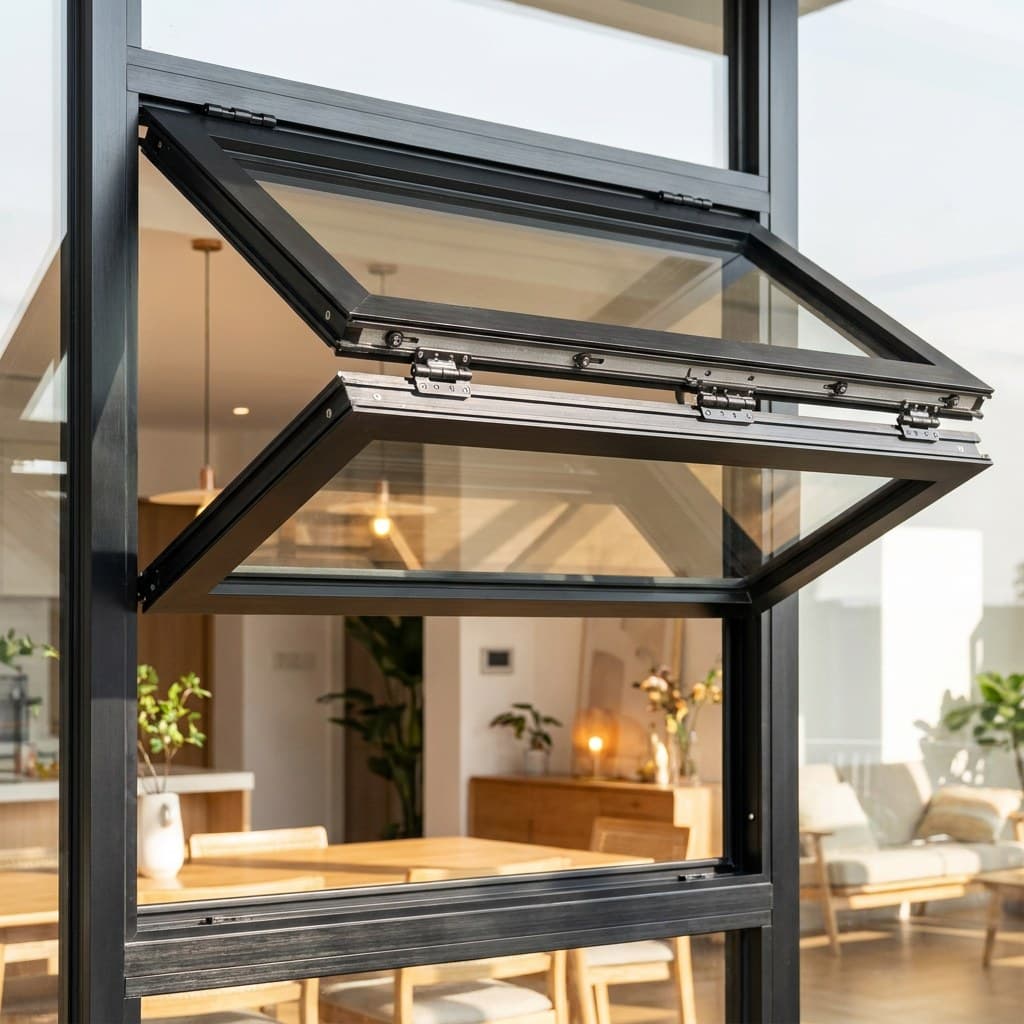

02Top-hinged sash
The sash hinges at the head of the frame and folds upward and outward from the bottom, providing ventilation and rain protection even when partially open.
03Retractable screen Included
A roll-up screen cassette spans the full opening and lowers into place when the sash is open. Also offered in a pull up & down configuration for vertical-slide applications.
04Weather sealing
High-quality weather strips work with the frame construction for a quiet, weathertight seal.
42"-72"
Height range
64 mm
System depth · 2.5″
30″–100″
Width range
0.30
U-Factor
Specifications
| Feature | LIFT 100 Series |
|---|---|
| Width range | 30″–100″ |
| Height range | 42″–72″ |
| System depth | 64 mm · 2.5 in |
| Profile wall thickness | 1.72 mm |
| Operation | Top-hinged fold-up · heavy-duty hardware · stops and holds at any height |
| Bottom frame | With bottom frame (classic install) or without (pass-through) — optional |
| Standard glass | Low-E2 tempered insulated glass · 90% argon |
| Glazing alternatives | Low-E4 · triple panel ·Laminated · smart / frosted |
| Insect screen | Retractable screen — INCLUDED · pull down |
| U-Factor | 0.30 |
| Solar Heat Gain Coefficient | 0.23 |
| Visible Transmittance | 0.51 |
| Air leakage | 0.30 |
| Wind load resistance | 77 mph |
| Frame material | Aluminum 6063-T5 · non-thermal-break |
| Finish | Powder-coated aluminum · multiple powder-coat & wood-grain finishes |
| Most popular for | Kitchen pass-throughs · indoor-outdoor bars · patio serving counters |
Resources
Frequently asked questions
The LIFT 100 Series Fold-Up Window is available in widths from 30″ to 100″ and heights from 47″ to 112″. Adhering to these size limitations maintains structural integrity and ensures smooth operation — contact our team for custom sizes beyond them.
Yes — the heavy-duty hardware is designed to stop and hold the panels at any height, from fully closed to fully open. Lift the sash manually and it stays exactly where you leave it.
Yes — the sash hinges at the head of the frame and folds upward and outward from the bottom, providing ventilation and rain protection even when partially open.
The retractable screen is an available option, also offered in a pull up & down configuration. The bottom frame is optional too: keep it for a classic install with a finished interior ledge, or omit it for a flush pass-through that runs your countertop straight through the opening.
