Open visualizer →Why Choose the Glide 600 Series Sliding Door?
Slide the wall away. The Glide 600 Series turns a simple opening into a wide, uninterrupted wall of glass — built on a heavy-duty 135 mm thermal-break aluminum frame with fully integrated hardware. Choose two-track or three-track configurations, high or low thresholds, copper or standard tracks, the glass package, and the finish. Every Glide is built to order, and a matching screen is included with every purchase.
- 135 mm thermal-break frame with 14.8 mm insulation strip and 2.0 mm walls
- Panels up to 80″ wide × 120″ high — overall openings up to 20 feet
- Reinforced vertical frame with built-in handle — no protruding hardware
- Multi-layer silicone and EPDM sealing for soundproofing and insulation
System design
Engineered to glide
01
Reinforced Vertical Frame
The reinforced middle frame boosts wind-pressure resistance on tall, wide panels — engineered for openings up to 20 feet. A built-in handle is integrated into the vertical stile: no protruding hardware, clean sightlines, easy sliding.
02
Collision-Resistant Block Design
Cushioning pads and elastic silicone materials reduce direct impact between the door and frame during operation — minimizing operating noise and the risk of glass breakage over years of daily use.
03
Multi-Layer Sealing System
Professional silicone-sealed weatherstrips and EPDM gaskets create a multi-layer seal that blocks wind and rain, with excellent soundproofing and thermal insulation for a quiet, comfortable interior.
04
135 mm Thermal-Break System
A 14.8 mm polyamide insulation strip separates interior and exterior aluminum profiles, dramatically reducing heat transfer and condensation compared with non-thermal-break systems.
05
High, Low & Copper Track Options
Choose high track for maximum weather sealing, low track for a flush walk-over threshold, or the copper-alloy roller system for ultra-smooth, corrosion-resistant operation — on two- or three-track layouts.
06
Fully Integrated Hardware
Rollers, locks, and handles are engineered into the frame for fingertip operation of heavy panels. Bottom-roller tracks with top guidance keep every panel steady, and a matching screen is included in every purchase.

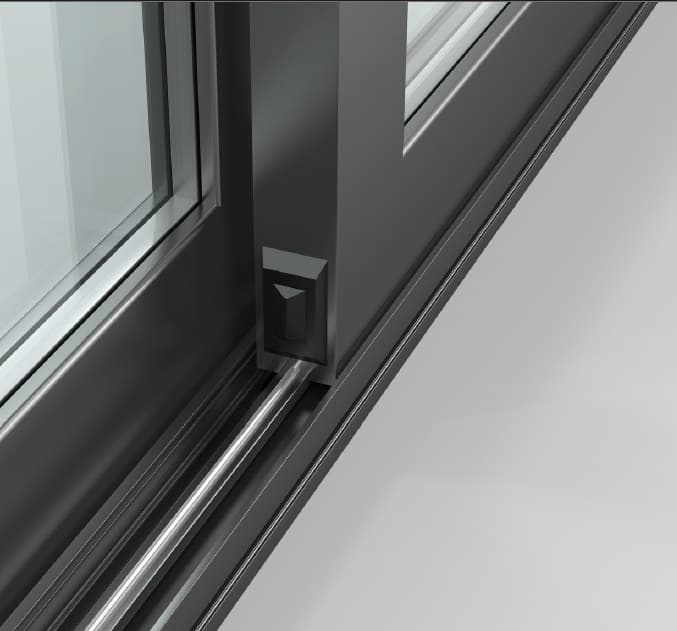

Hardware
Hardware in the details
01Bottom roller track & top guidance
Precision bottom rollers carry the full panel weight along the sill track, with discreet top guidance keeping tall panels aligned through the travel — smooth, stable operation with minimal header load.
02Built-in pull handle
The handle is integrated directly into the vertical stile of the reinforced middle frame — nothing protrudes into the opening, and oversized panels still glide with fingertip effort.
03Integrated key lock
Low-profile keyed locking engineered into the stile secures the active panel, paired with compression seals at the meeting rails for a tight, quiet closure.
04Copper track option
An optional copper-alloy roller track system delivers premium rolling smoothness and corrosion resistance on both two-track and three-track configurations.
120.0″
Max panel height
3048 mm
80.0″
Max panel width
2032 mm
2–6
Panels per door
135 mm
Frame depth · 5.3″
Specifications
| Feature | Glide 600 Series |
|---|---|
| Max overall width | 6096 mm · 20 ft |
| Max panel height | 3048 mm · 120 in |
| Max panel width | 2032 mm · 80 in |
| Panels per door | 2–6 panels · 2 or 3 tracks |
| Frame depth | 135 mm · 5.3 in |
| Sash sightline (vertical) | 102 mm · 4.0 in |
| Frame depth at head / sill | 45 / 50 mm · 1.8 / 2.0 in |
| Profile wall thickness | 2.0 mm and above |
| Insulation strip | 14.8 mm polyamide thermal break |
| Track options | High track / Low track / Copper track |
| Standard glass | 5 mm + 24A + 5 mm double insulated tempered Low-E2 (optional 5+27A+5) |
| Glazing alternatives | Low-E4 · triple-pane · laminated insulated · frosted / smart glass |
| Hardware type | Bottom-roller track with top guidance |
| Locking system | Integrated key lock with compression seals |
| Screen | Included with every purchase |
| Frame material | Aluminum 6063-T5 |
| Air leakage | ≤ 0.20 cfm/ft² |
| Condensation resistance | 61 |
| Finish | Powder-coated aluminum · yellow rosewood / matte coffee / matte black / matte gray / light matte gray / metal gray |
| Most popular for | Homeowners · patio, pool & view openings |
Resources
Frequently asked questions
The Glide 600 Series accommodates individual panels up to 80″ wide × 120″ high, with 2 to 6 panels on two-track or three-track systems and a maximum overall width of 20 feet. Popular layouts include 2, 3, 4, and 5 panel multi-sliders and 4 or 6 panel center-opening configurations. Custom sizes are available — call our team.
Yes. Keep the sill track free of grit — vacuum, then wipe. Lubricate the rollers and lock per the hardware schedule and check visible fixing screws annually. Clean glass with mild soapy water and avoid abrasive pads on the frame finish.
Absolutely. Multi-layer silicone-sealed weatherstrips and EPDM gaskets, a 135 mm thermal-break frame with a 14.8 mm insulation strip, and the optional high track keep the Glide 600 Series performing through rain, heat, and wind year-round.
Every Glide 600 Series includes precision bottom rollers with top guidance, a built-in pull handle integrated into the reinforced stile, an integrated key lock, your choice of high, low, or copper track, and a matching screen.
